The Address Standard XSD Data Model
(see Appendix A for the Complete XSD)

Content and Classification use the word element in a way that differs slightly from its use in designing XML document schemes.

• Content and Classification use element to describe a taxonomy facet for parsing an address.
• XML Scheme Document (XSD) uses element to describe an XML tag.

Some Content and Classification elements become XSD elements and others become XSD attributes of other XSD elements.

The Address Standard XSD has been designed by creating a simple type for almost every thing in Content and Classification. The simple data type is a place to describe the form of data that populates the simple type. Many times no attempt to provide an automatable test for correctness of form is given in the XSD. Local implementers may attempt such tests outside the scope of the Address standard.

From the simple types simple elements are created. Simple elements and some simple types cluster into complex elements. Finally, elements are gathered into the global elements that comprise the top level XML data types.

A crosswalk chart relating the Content and Classification elements into XSD classes, types, elements and attributes.

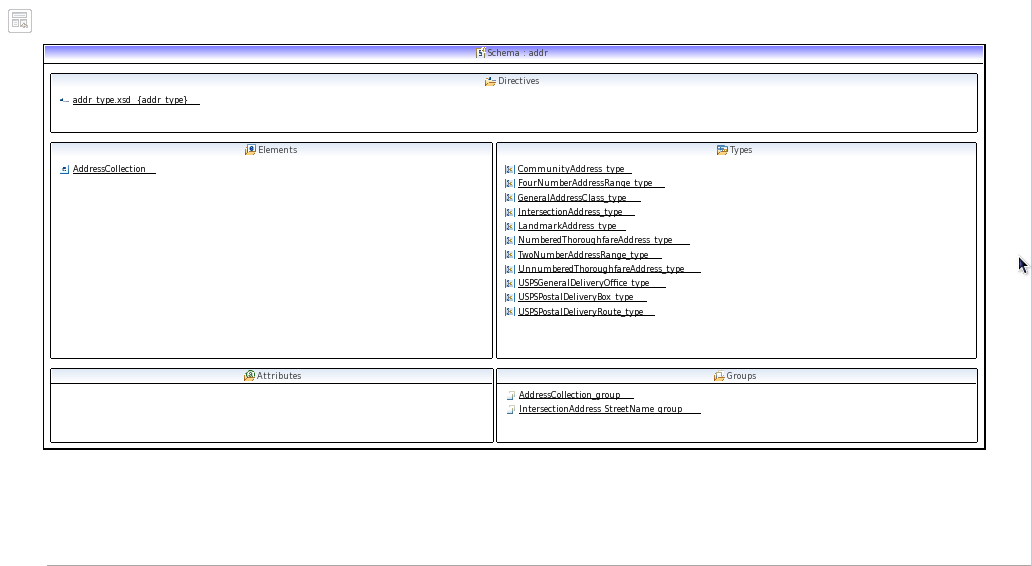

• Data Model 0.4.2 [diagram]
• Complex Types

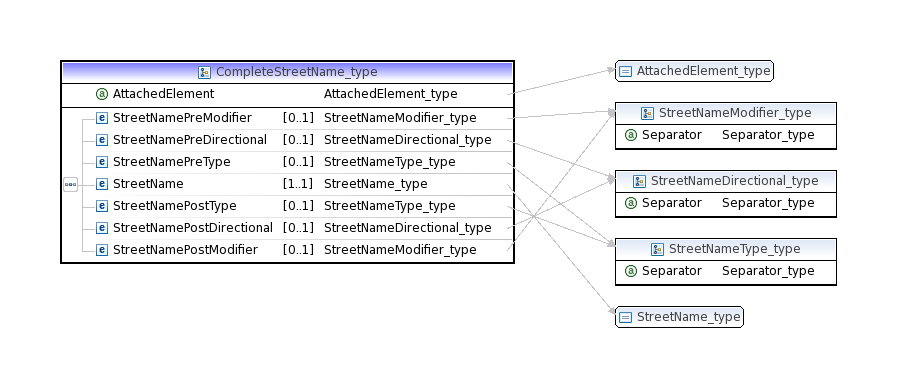

  • * Complete Street Name

    v0.4.2 [diagram]

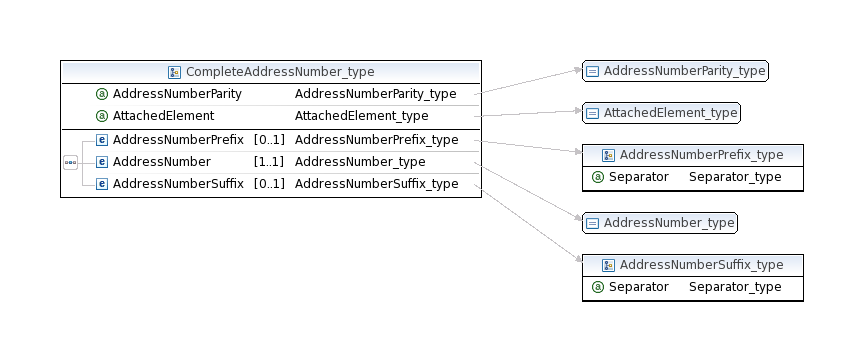

  • Complete Address Number

    v0.4.2 [diagram]

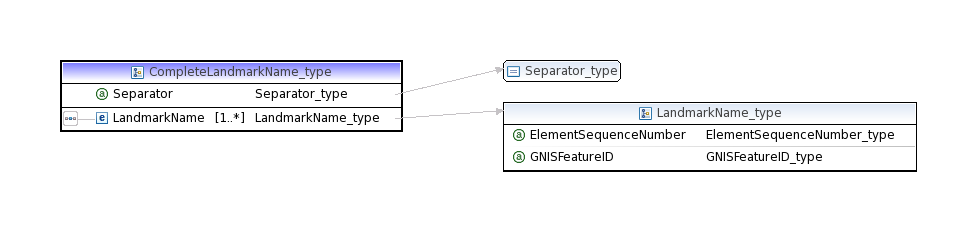

  • Complete Landmark Name

    v0.4.2 [diagram]

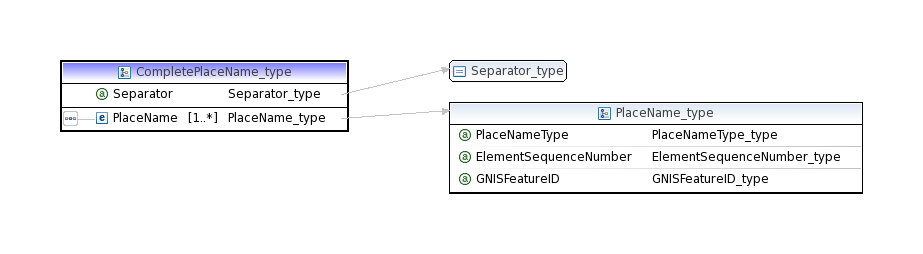

  • Complete Place Name

    v0.4.2 [diagram]

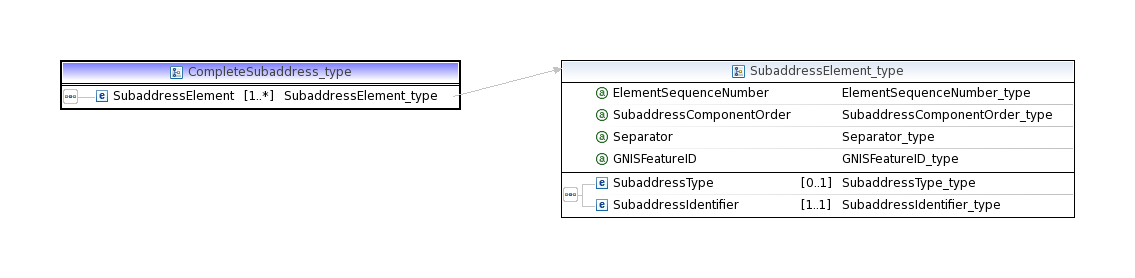

  • Complete Subaddress

    v0.4.2 [diagram]

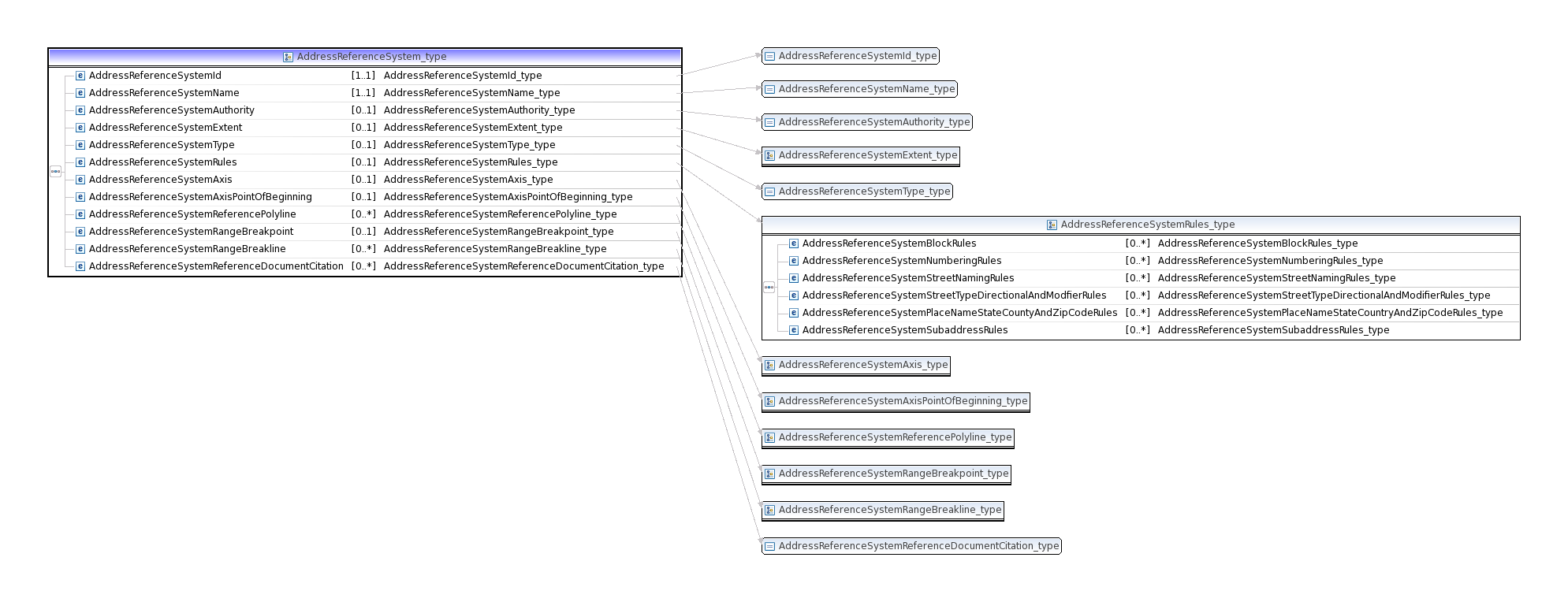

  • Address Referencesystem

    v0.4.2 [diagram]

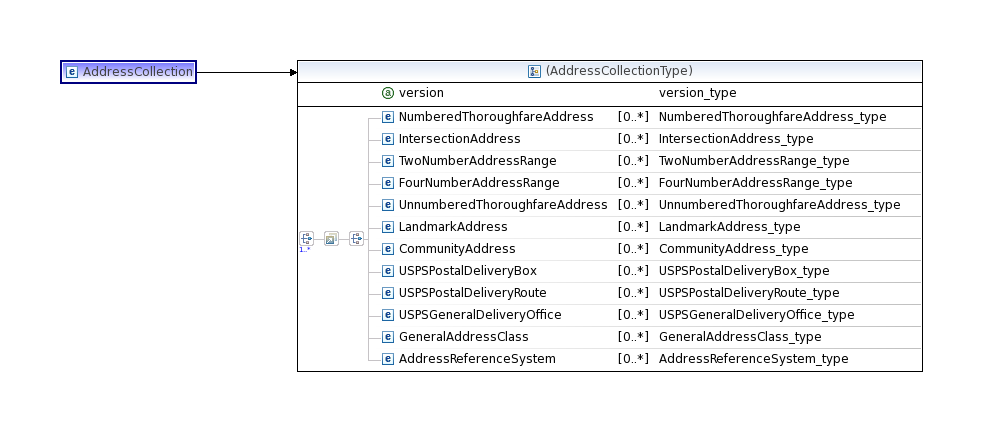

  • Address Collection

    v0.4.2 [diagram]

• Thoroughfare Address Classes

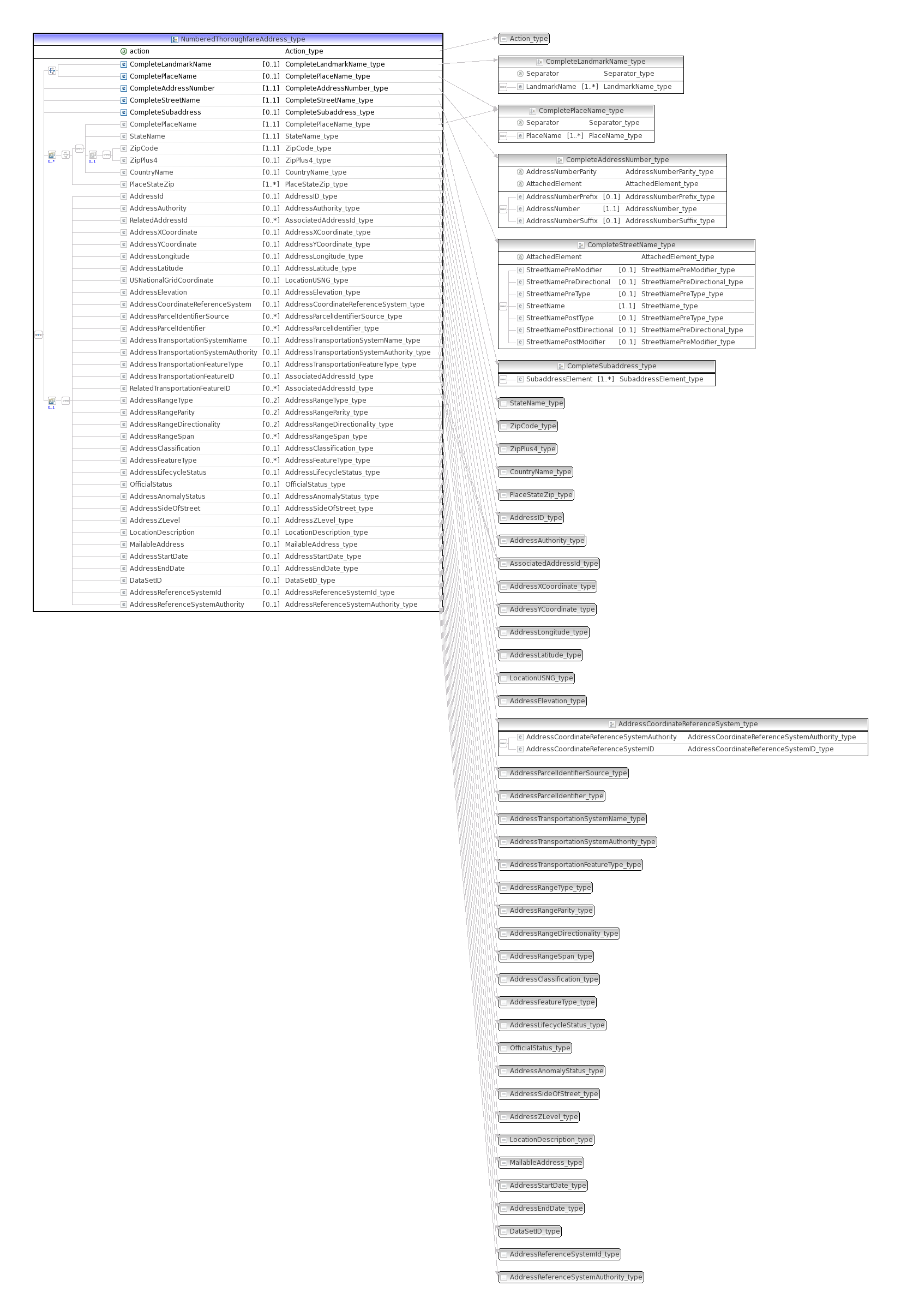

  • Numbered Thoroughfare Address

    v0.4.2 [diagram]

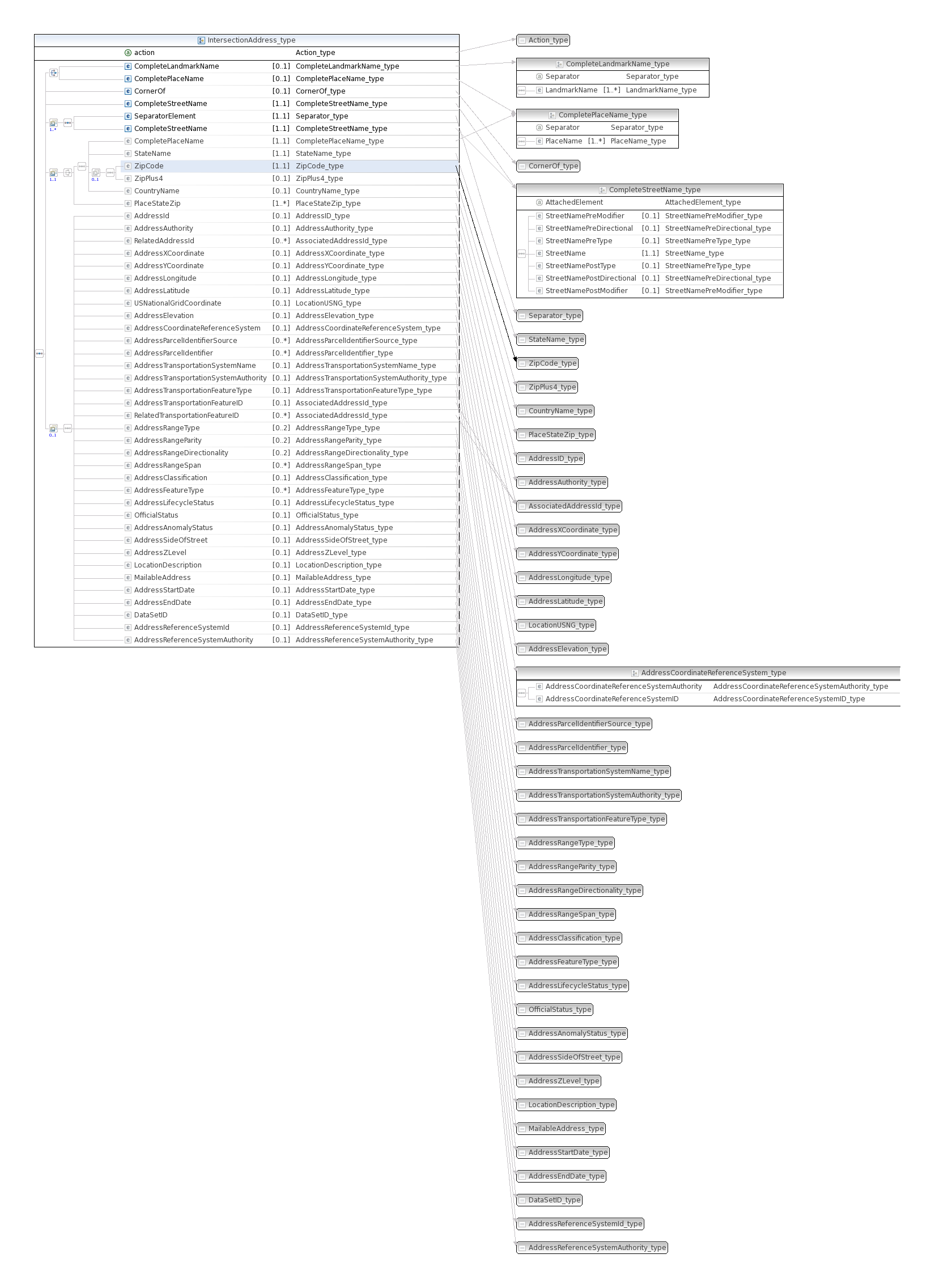

  • Intersection Address

    v0.4.2 [diagram]

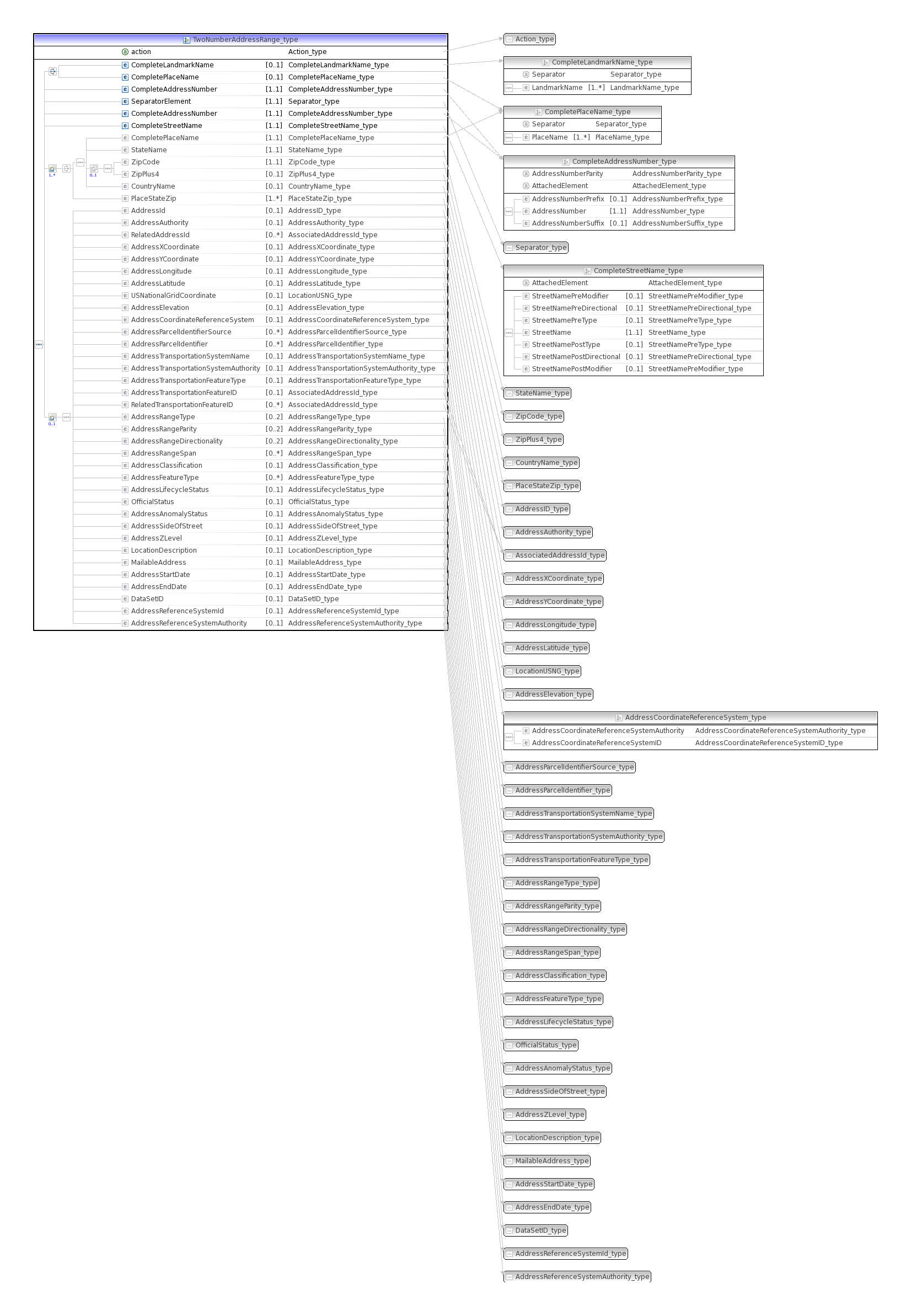

  • Two Number Address Range

    v0.4.2 [diagram]

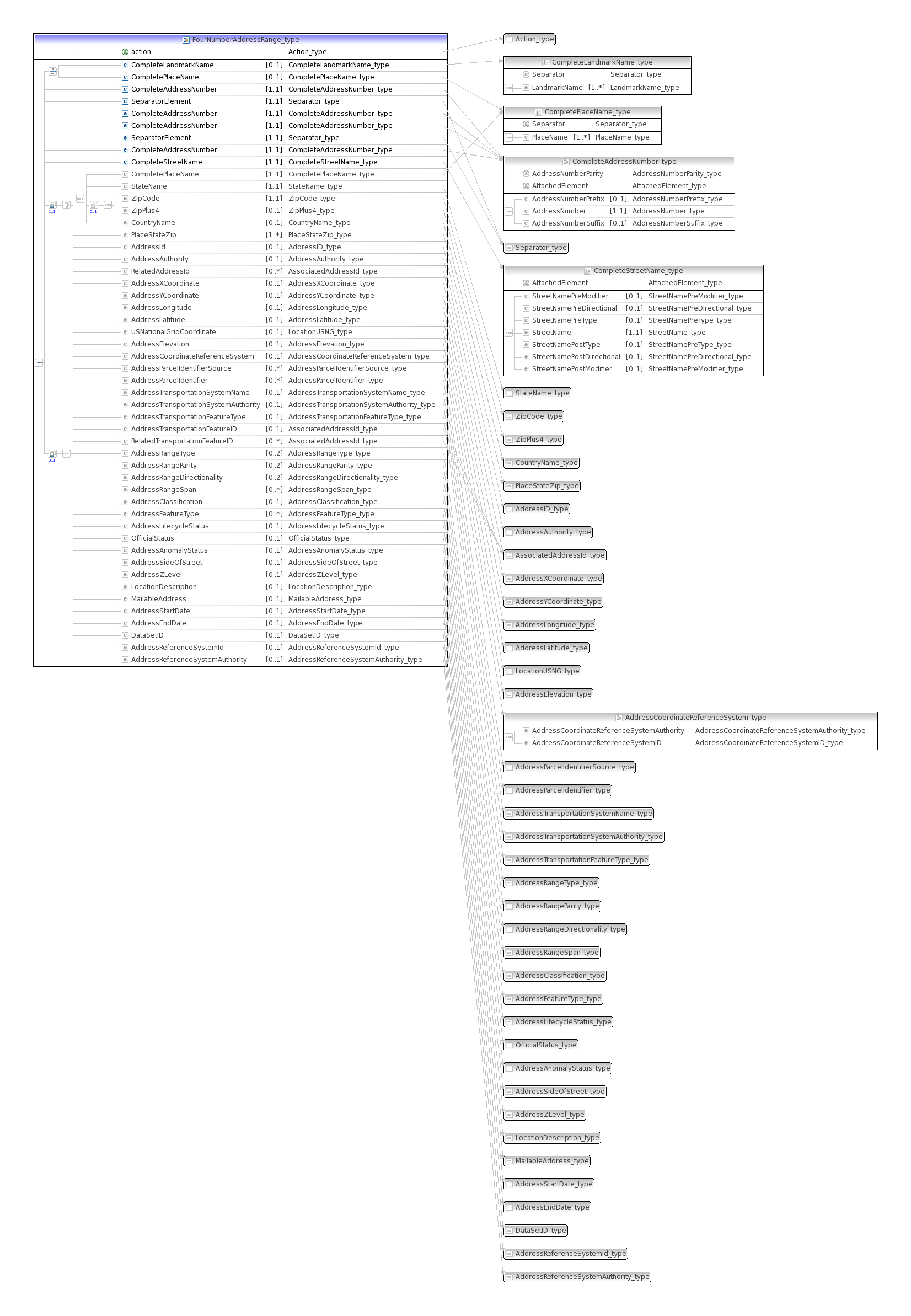

  • Four Number Address Range

    v0.4.2 [diagram]

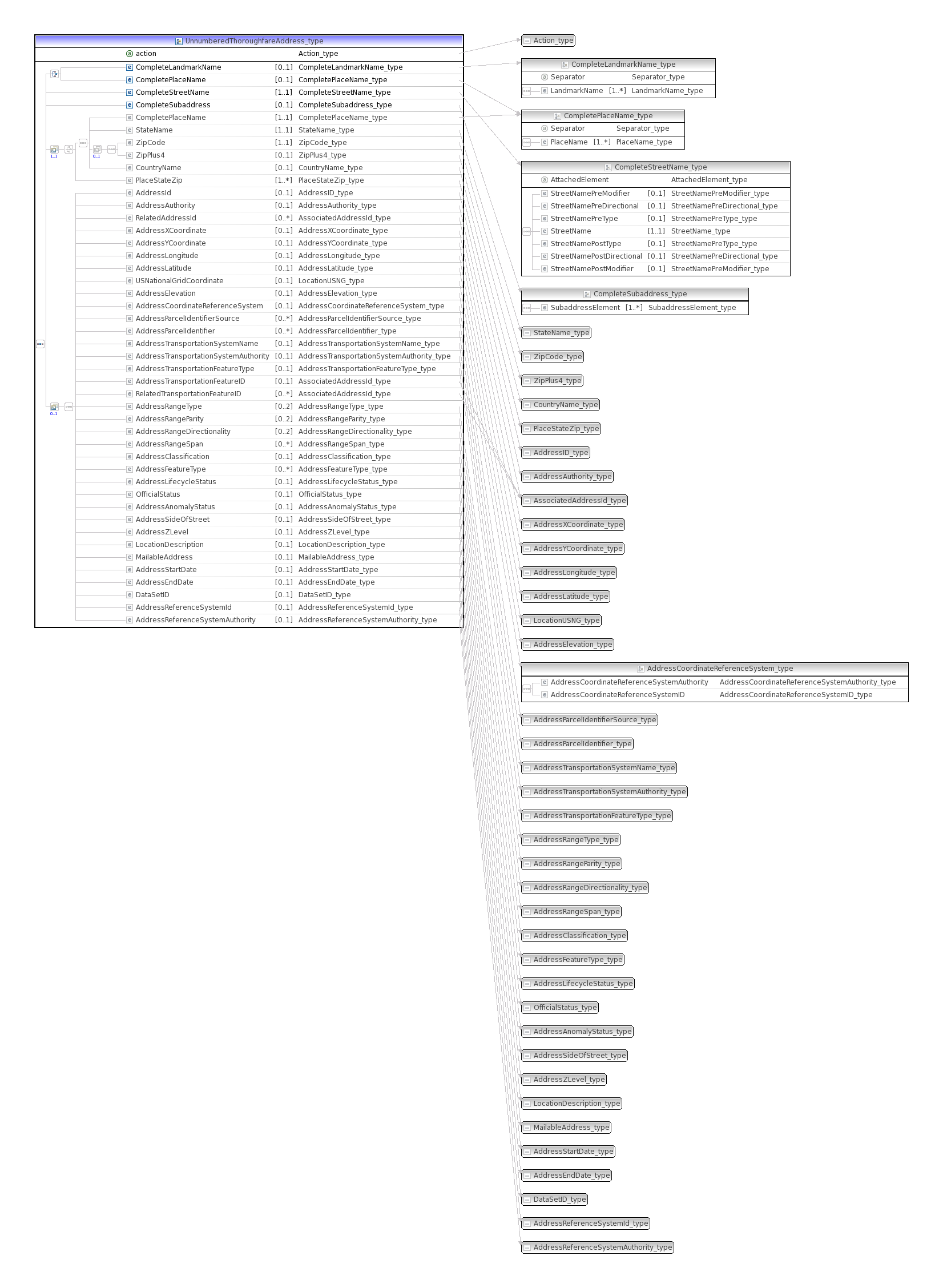

  • Unnumbered Thoroughfare Address

    v0.4.2 [diagram]

• Landmark Address Classes
  • Landmark Address

    v0.4.2 [diagram]

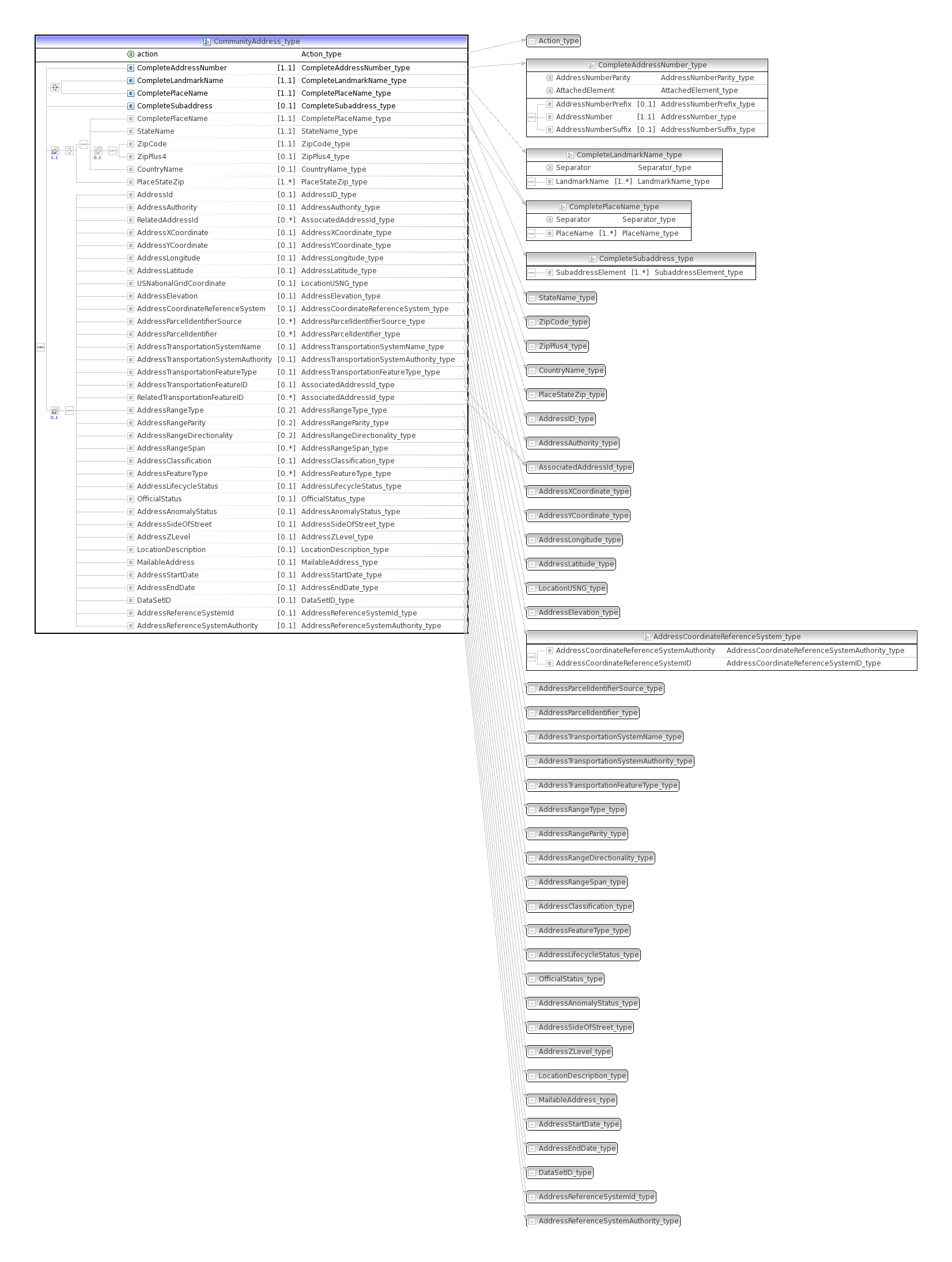

  • Community Address

    v0.4.2 [diagram]

• Postal Delivery Address Classes

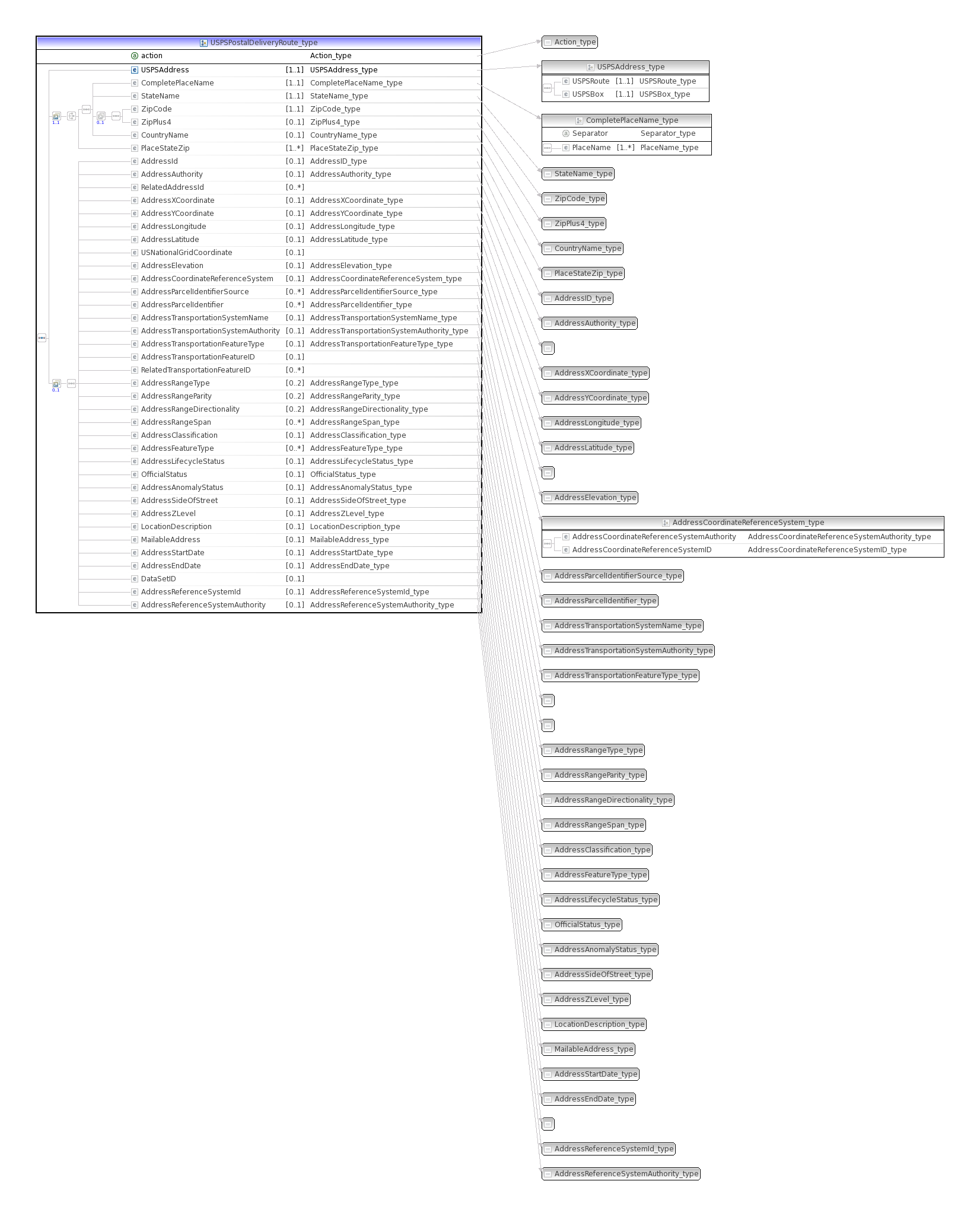

  • USPSPostal Delivery Route

    v0.4.2 [diagram]

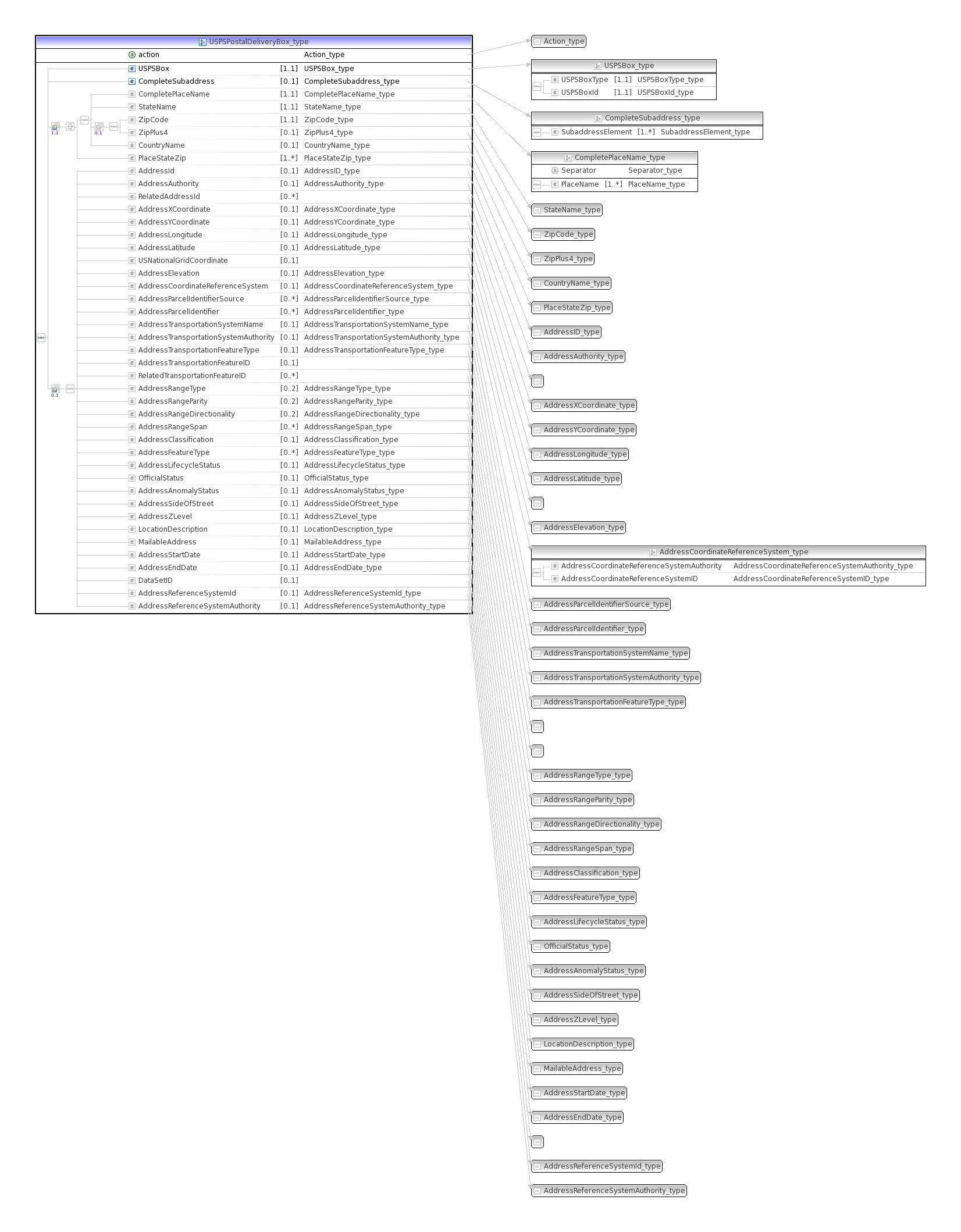

  • USPSpostal Delivery Box

    v0.4.2 [diagram]

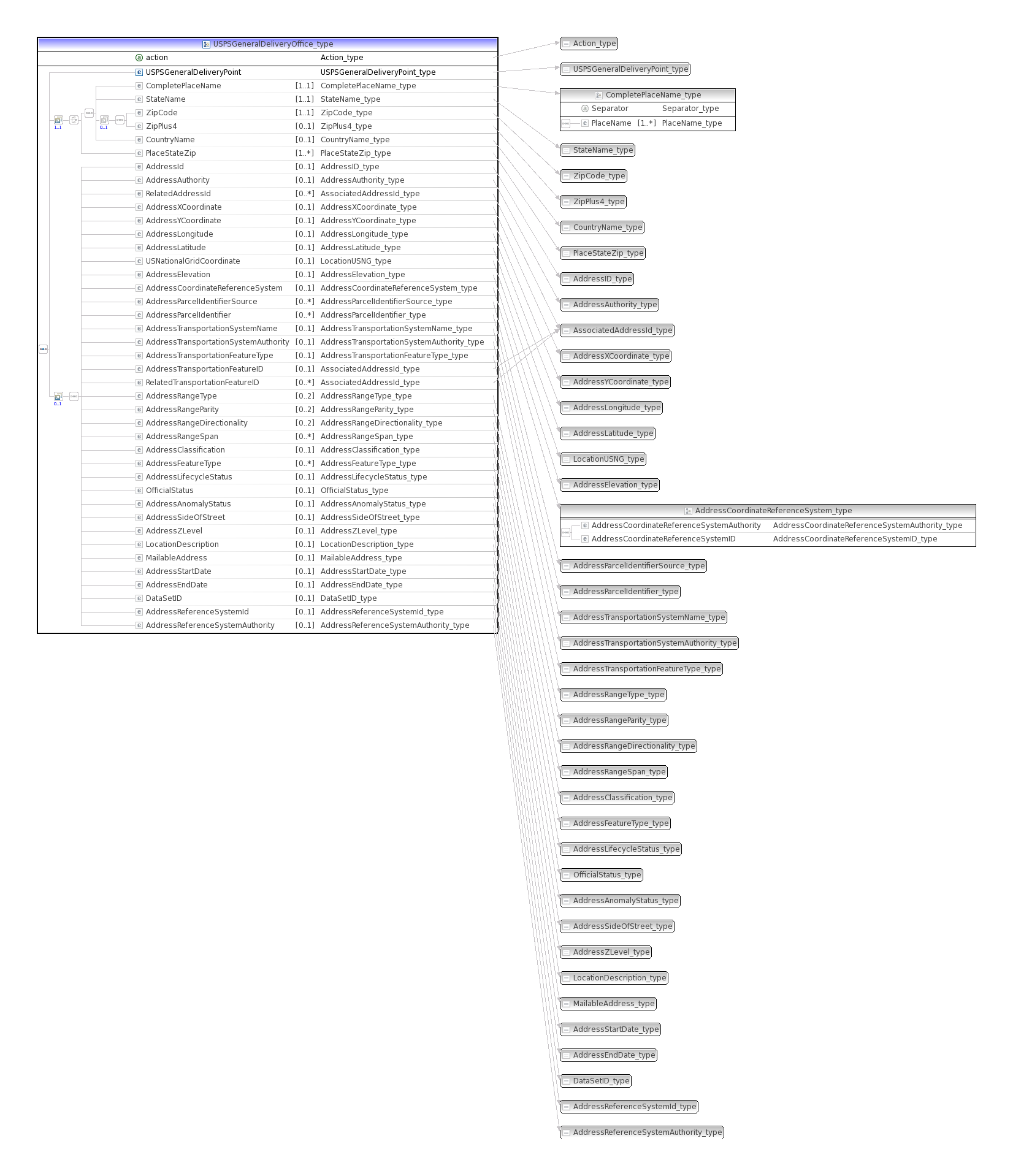

  • USPSGeneral Delivery Office

    v0.4.2 [diagram]

• General Address Class

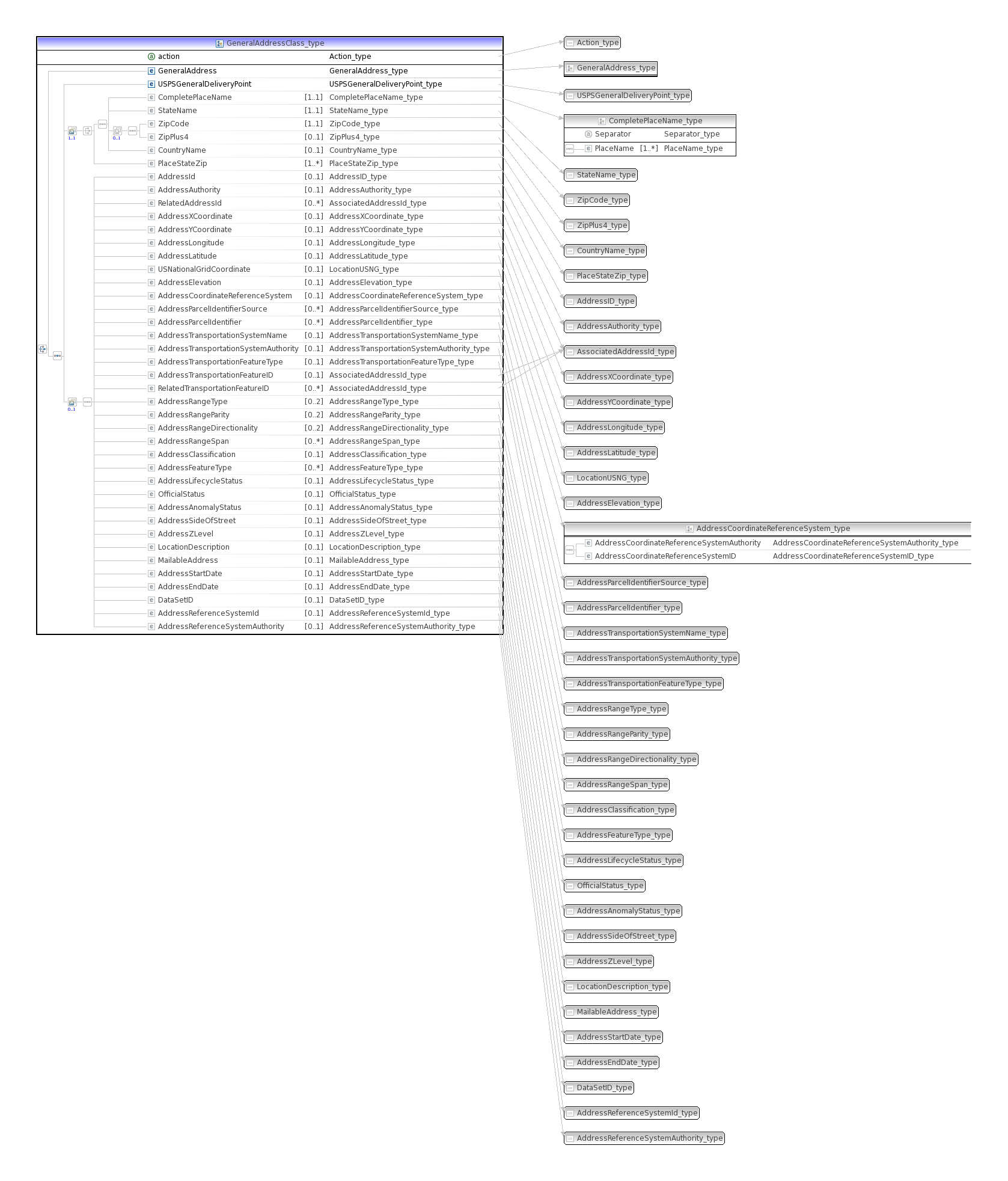

  • General Address Class

    v0.4.2 [diagram]
