| Standard Prefix | Title | Version | Scope | Standard, Paragraph | Requirements Name | Namespace URI | Thumbnail | UML Package | XML Schema | XML Schema Included | Imported Namespaces |
|---|---|---|---|---|---|---|---|---|---|---|---|
| cat | CATalogue | 1.0 | Elements for codelist catalogues, and example catalogues. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 7.4.4 | catalogue | http://standards.iso.org/iso/19115/-3/cat/1.0 | |
Catalog, Code List Item, uom Item, CRS Item | cat.xsd | catalogues.xsd codelistItem.xsd crsItem.xsd uomItem.xsd | lan, gco |

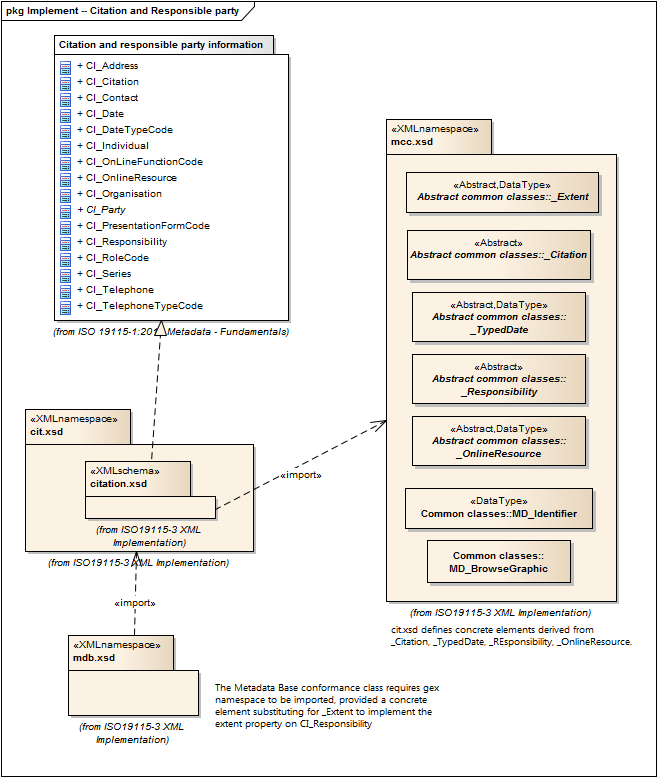

| cit | Citation and responsible party information | 1.0 | Utility elements for citation, identification, and web linkage of resources. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.6.3 | citation-metadata | http://standards.iso.org/iso/19115/-3/cit/1.0 | |
<<Leaf>> Citation | cit.xsd | citation.xsd | gco, mcc |

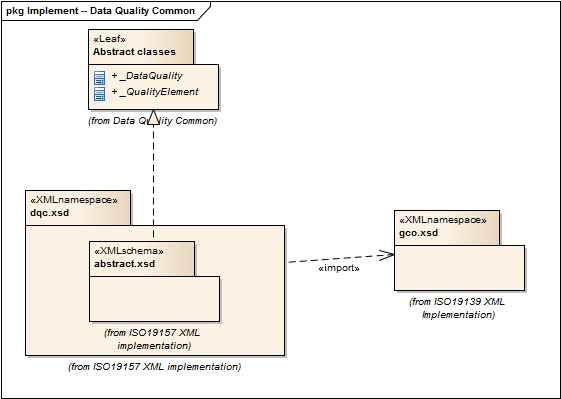

| dqc | Data Quality Common Classes | 1.0 | abstract classes shared by multiple namespaces and is required in order to enable modularization of the XML implementation. | ISO 19157, Geographic Information - Data Quality, 6.4 | data-quality-common | http://standards.iso.org/iso/19157/-2/dqc/1.0 | |
Data Quality | dqc.xsd | abstract.xsd | gco |
| dqm | Data Quality Measures | 1.0 | Elements for describing data quality measures. | ISO 19157, Geographic Information - Data Quality, 6.5 | quality-measures | http://standards.iso.org/iso/19157/-2/dqm/1.0 | |
Data Quality | dqm.xsd | qualityMeasures.xsd | cat, mcc, pre, gco |

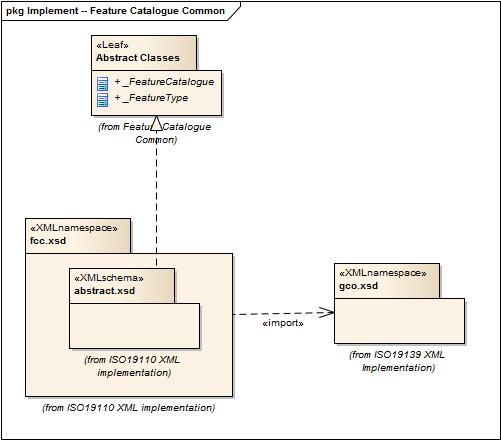

| fcc | Feature Catalog Common | 1.0 | abstract classes shared by multiple namespaces and is required in order to enable modularization of the XML implementation. | ISO 19110, Geographic information -- Methodology for feature cataloguing | feature-catalog-common | http://standards.iso.org/iso/19110/fcc/1.0 | |
fcc.xsd | abstract.xsd | gco, cat | |
| gco | Geographic COmmon | 1.0 | Elements for describing basic types from ISO/TS 19103 and conceptual elements from ISO 19118 required in XML implementations of ISO metadata standards. | ISO 19115-1, ISO/TS 19139 Geographic information - Metadata - XML schema implementation | geographic-common | http://standards.iso.org/iso/19115/-3/gco/1.0 | |
None | gco.xsd | baseTypes2014.xsd | xlink |

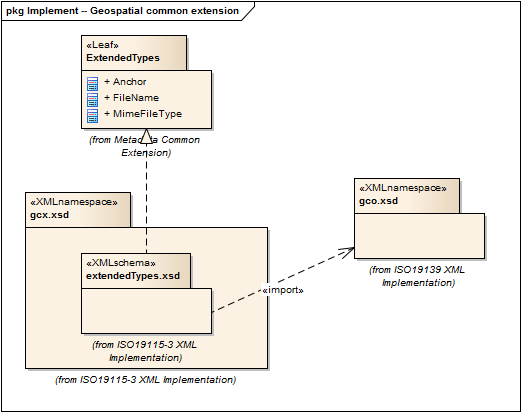

| gcx | Geospatial Common eXtension | 1.0 | Elements for xml implementation, from ISO 19139 updated for compatibility with 19115-3. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 7.2 | extended-types | http://standards.iso.org/iso/19115/-3/gcx/1.0 | |
<<Leaf>> Extended Types | gcx.xsd | extendedTypes.xsd | gco, xlink, mcc |

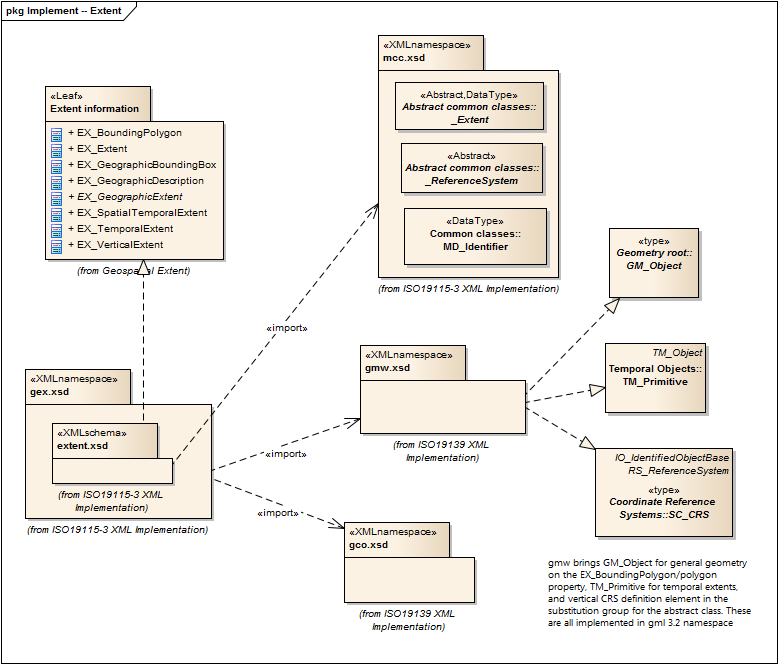

| gex | Geospatial EXtent | 1.0 | Elements for specifying geospatial properties of a resource, including extent and spatial reference systems. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.6.1 | geospatial-extent | http://standards.iso.org/iso/19115/-3/gex/1.0 | |
<<Leaf>> Extent | gex.xsd | extent.xsd | gco, gmw, mcc |

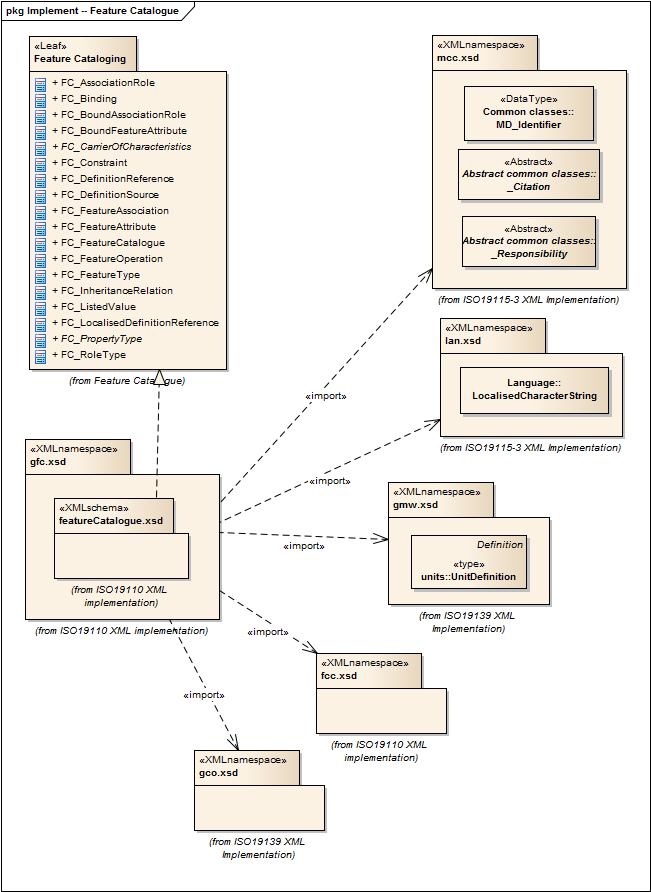

| gfc | General Feature Catalog | 1.1 | ISO 19110:2005 defines the methodology for cataloguing feature types and specifies how the classification of feature types is organized into a feature catalogue and presented to the users of a set of geographic data. ISO 19110:2005 is applicable to creating catalogues of feature types in previously uncatalogued domains and to revising existing feature catalogues to comply with standard practice. ISO 19110:2005 applies to the cataloguing of feature types that are represented in digital form. Its principles can be extended to the cataloguing of other forms of geographic data. | ISO 19110, Geographic information -- Methodology for feature cataloguing | feature-catalog | http://standards.iso.org/iso/19110/gfc/1.1 | |
gfc.xsd | featureCatalogue.xsd | gco, fcc, lan, mcc, cit | |
| gmw | Geographic Markup Wrappers | 1.0 | Wrappers for gml dependencies. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals | geographic-wrappers | http://standards.iso.org/iso/19115/-3/gmw/1.0 | |
None | gmw.xsd | gmlWrapperTypes2014.xsd | gml, xlink, baseTypes2014 |
| lan | Language localization | 1.0 | Elements for cultural and linguistic adapatiblity. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 7.3 | language-localization | http://standards.iso.org/iso/19115/-3/lan/1.0 | |
<<Leaf>> Language | lan.xsd | language.xsd | cit, gco |
| mac | Metadata for Acquisition | 1.0 | Information related to acquisition platforms, instruments, operations and other details. | ISO 19115-2, Geographic Information - Metadata - Part 2: Extensions for imagery and gridded data, A.2.5 | http://standards.iso.org/iso/19115/-3/mac/1.0 | |
Acquisition Details | mac.xsd | acquisitionInformationImagery.xsd | gco, gmw, mcc | |

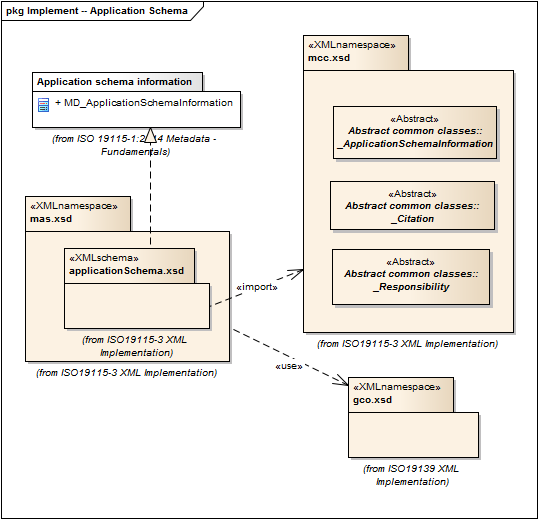

| mas | Metadata for Application Schema | 1.0 | Elements for referencing Application Schema. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.13 | application-schema | http://standards.iso.org/iso/19115/-3/mas/1.0 | |
<<Leaf>> Application Schema | mas.xsd | applicationSchema.xsd | gco, mcc, cit |

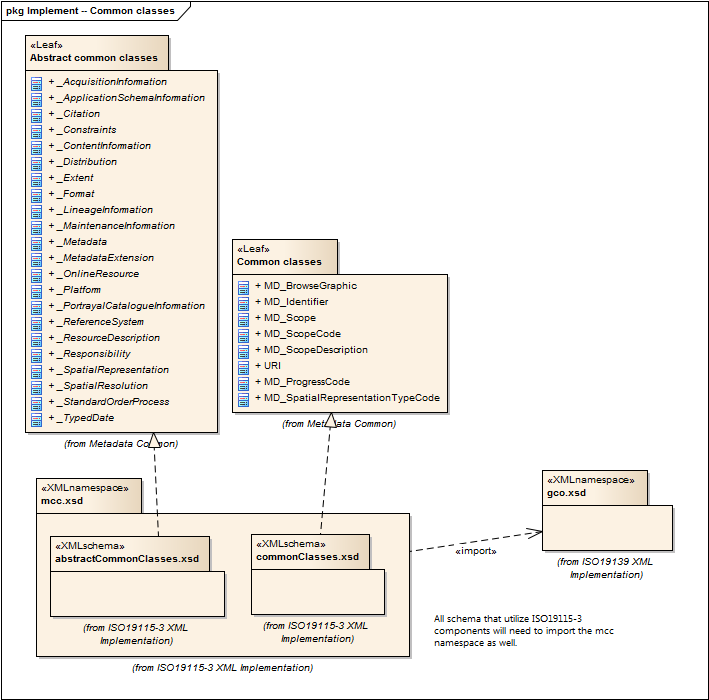

| mcc | Metadata Common Classes | 1.0 | abstract classes shared by multiple namespaces and is required in order to enable modularization of the XML implementation. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.6.4 | common-classes | http://standards.iso.org/iso/19115/-3/mcc/1.0 | |
<<Leaf>> | mcc.xsd | AbstractCommonClasses.xsd commonClasses.xsd | gco |

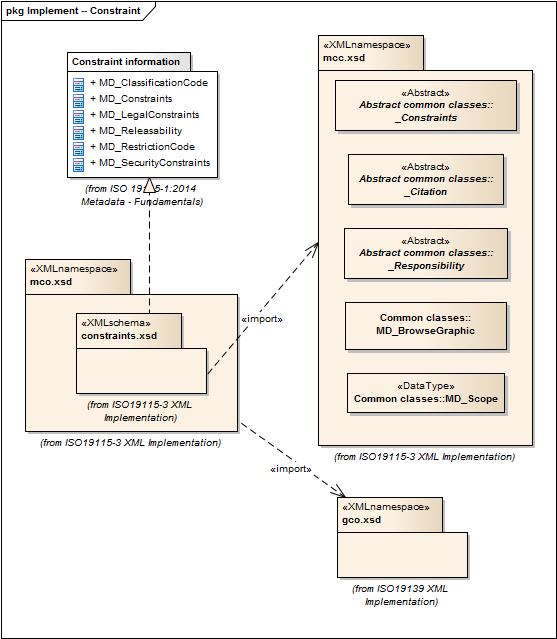

| mco | Metadata for Constraints | 1.0 | Elements for describing resource and metadata constraints. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.4 | constraints | http://standards.iso.org/iso/19115/-3/mco/1.0 | |
<<Leaf>> Constraints | mco.xsd | constraints.xsd | gco, mcc |

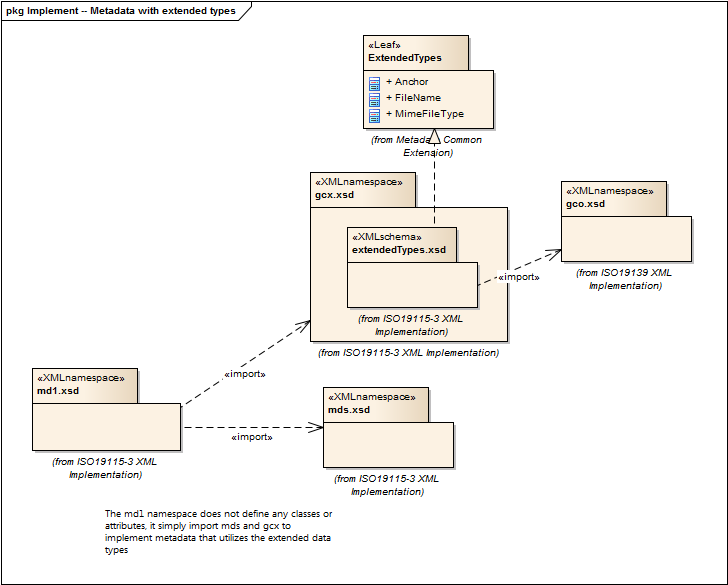

| md1 | Metadata for Data and Services with Geospatial Common Extensions | 1.0 | This namespace contains all classes needed for a complete metadata record for any resource and enables the use of FileName, MimeType, and Anchor elements (gex). | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, A.2.3.4 | metadata-extended-types-instance | http://standards.iso.org/iso/19115/-3/md1/1.0 | |
Implementation Model Only | md1.xsd | metadataWExtendedType.xsd | gcx, mds |

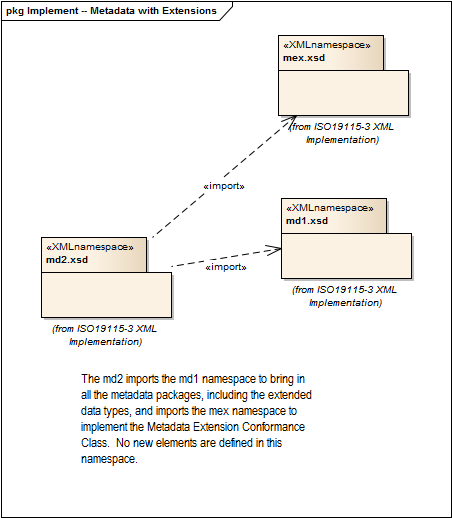

| md2 | Metadata for Data and Services with Geospatial Common Extensions | 1.0 | This namespace contains all classes needed for a complete metadata record for any resource and enables the description of schema extensions (MD_MetadataExtensionInformation) elements (mex). | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, A.2.3.5 | extended-metadata-instance | http://standards.iso.org/iso/19115/-3/md2/1.0 | |
Implementation Model Only | md2.xsd | metadataWithExtensions.xsd | cit, gcx, lan, mcc, md1, mex, mpc, mri |
| mda | MetaData Application | 1.0 | Elements to represent resources that may be aggregated and described by metadata records (DS_*) | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.2 | metadata-application | http://standards.iso.org/iso/19115/-3/mda/1.0 | |
<<Leaf>> Metadata Application | mda.xsd | metadataApplication.xsd | md2, gco, mdb |
| mdb | Metadata Base | 1.0 | Mandatory elements for describing resources that are not services. This namespace is used for metadata records that include only mandatory elements. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.2 | metadata-base | http://standards.iso.org/iso/19115/-3/mdb/1.0 | |
mdb.xsd | metadataBase.xsd | cit, dqc, lan, mcc, mri, gex, gco | |

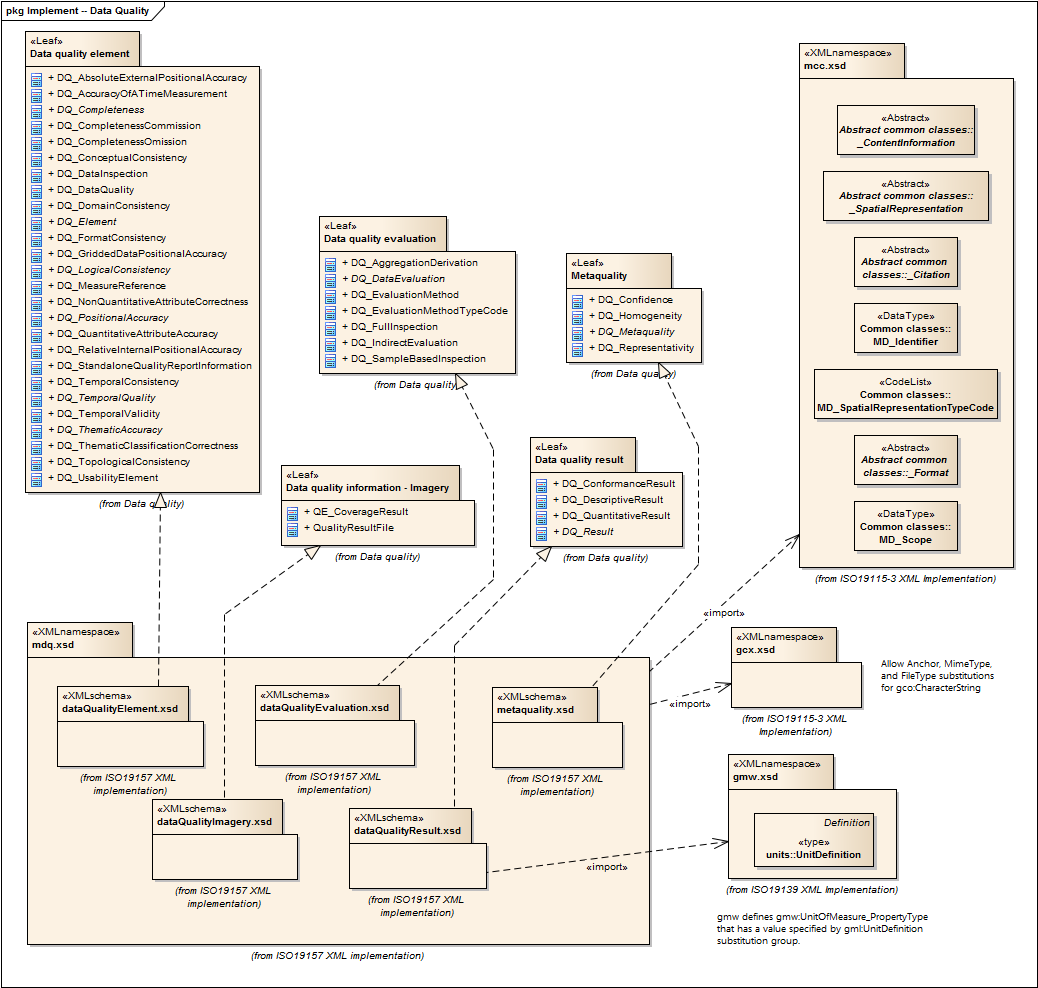

| mdq | Metadata for Data Quality | 1.0 | Elements for describing the quality of resources. | ISO 19157, Geographic Information - Data Quality, 6.4 | data-quality | http://standards.iso.org/iso/19157/-2/mdq/1.0 | |
Data Quality | mdq.xsd | dataQualityElement.xsd dataQualityEvaluation.xsd dataQualityImagery.xsd dataQualityResult.xsd metaquality.xsd | gco, dqc, mcc, gcx, mrd, gmw |
| mds | Metadata for Data and Services | 1.0 | This namespace contains all classes needed for a complete metadata record for any resource. It is used for metadata records that do not include geospatial common extensions (gex), extenbsions to the schema (mex), data series (DS_*) elements (mda) or metadata for data transfer (mdt). | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.2 | metadata-data-or-services | http://standards.iso.org/iso/19115/-3/mds/1.0 | |
<<Leaf>> | mds.xsd | metadataDataServices.xsd | fcc, gex, mac, mas, mco, mdb, mdq, mmi, mpc, mrc, mrd, mrl, mrs, msr, srv |

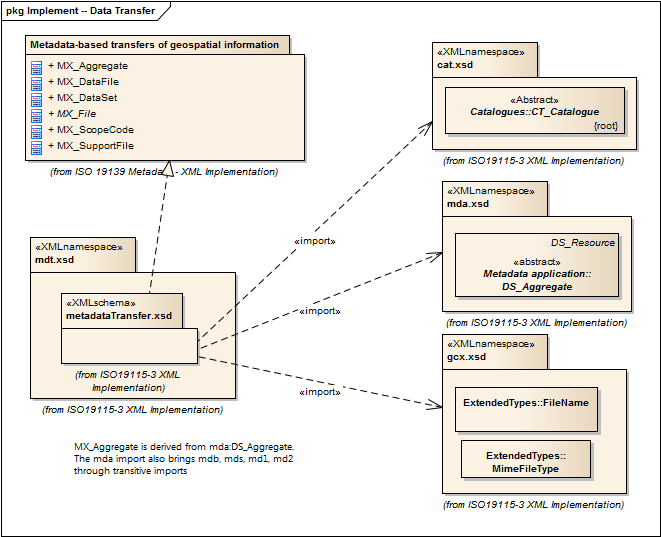

| mdt | Metadata for Data Transfer | 1.0 | This namespace contains all classes needed for a complete metadata record for any resource and enables the description of data transfer (MX_*) elements. This is the most inclusive of the ISO 19115-3 namespaces so it should be used in situations where all 19115-3 capabilities are required. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 7.4.2, 7.4.3 | data-transfer | http://standards.iso.org/iso/19115/-3/mdt/1.0 | |
<<Leaf>> Metadata-based Data Transfers | mdt.xsd | metadataTransfer.xsd | cat, gcx, mda, gco |

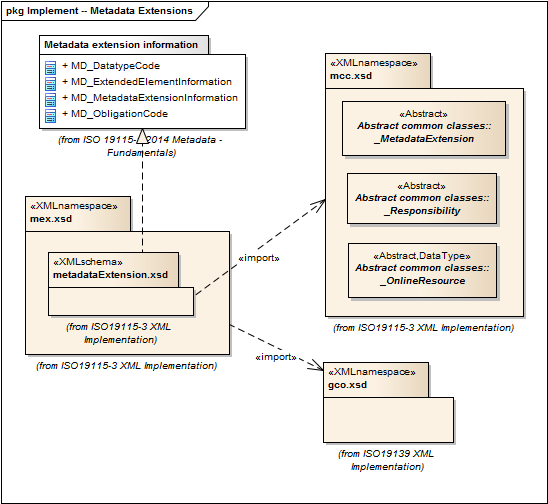

| mex | Metadata with Schema Extensions | 1.0 | Elements describing extensions to metadata standards. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.12 | metadata-extension | http://standards.iso.org/iso/19115/-3/mex/1.0 | |
<<Leaf>> Metadata Extension | mex.xsd | metadataExtension.xsd | gco, mcc |
| mmi | Metadata for Maintenance Information | 1.0 | Elements describing resource and metadata maintenance. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.6 | maintenance-information | http://standards.iso.org/iso/19115/-3/mmi/1.0 | |
<<Leaf>> Maintenance | mmi.xsd | maintenance.xsd | gco, mcc |
| mpc | Metadata for Portrayal Catalog | 1.0 | Elements for referencing portrayal catalogs. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.10 | portrayal-catalog | http://standards.iso.org/iso/19115/-3/mpc/1.0 | |
<<Leaf>> Portrayal Catalog | mpc.xsd | portrayalCatalogue.xsd | mcc, gco |
| mrc | Metadata for Resource Content | 1.0 | Elements for describing resource structure and content. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.9 | resource-content | http://standards.iso.org/iso/19115/-3/mrc/1.0 | |
<<Leaf>> Resource Content | mrc.xsd | content.xsd contentInformationImagery.xsd | gco, gmw, fcc, lan, mcc |
| mrd | Metadata for Resource Distribution | 1.0 | Elements specifying how a resource is accessed. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.11 | resource-distribution | http://standards.iso.org/iso/19115/-3/mrd/1.0 | |
<<Leaf>> Distribution Information | mrd.xsd | distribution.xsd | gco, mcc |
| mri | Metadata for Resource Identification | 1.0 | Elements for identifying resources. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.3 | resource-identification | http://standards.iso.org/iso/19115/-3/mri/1.0 | |
<<Leaf>> Identification Information | mri.xsd | identification.xsd | gco, gmw, lan, mcc |
| mrl | Metadata for Resource Lineage | 1.0 | Elements for describing resource lineage. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.5 | lineage | http://standards.iso.org/iso/19115/-3/mrl/1.0 | |
<<Leaf>> | mrl.xsd | lineage.xsd lineageImagery.xsd | gco, gmw, mcc |

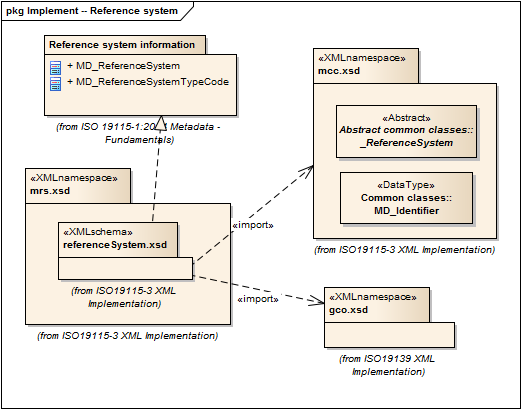

| mrs | Metadata for Reference System | 1.0 | Elements for describing Reference Systems. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.8 | reference-system | http://standards.iso.org/iso/19115/-3/mrs/1.0 | |
<<Leaf>> Reference System | mrs.xsd | referenceSystem.xsd | mcc, gco |

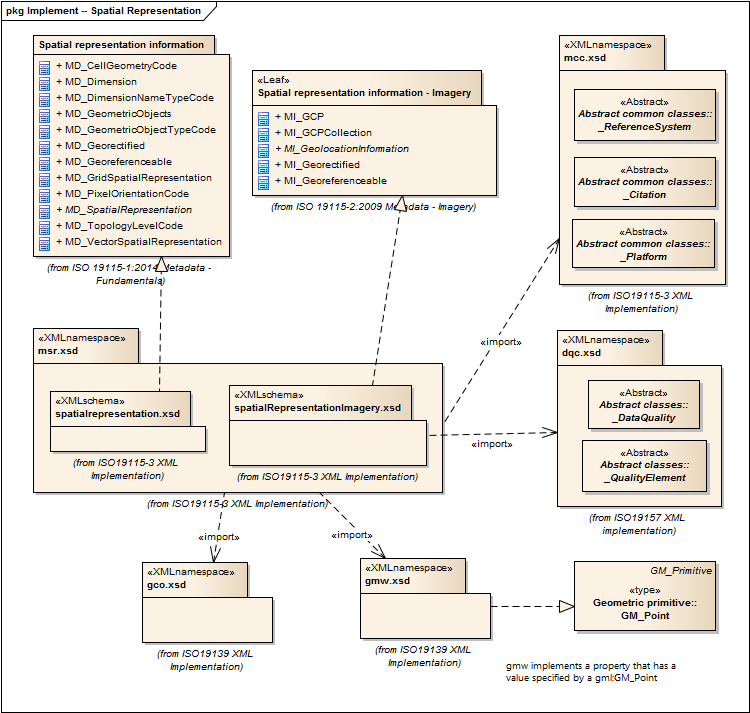

| msr | Metadata for Spatial Representation | 1.0 | Elements for describing spatial representations of resources. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.7 | spatial-representation | http://standards.iso.org/iso/19115/-3/msr/1.0 | |
<<Leaf>> Spatial Representation | msr.xsd | spatialRepresentation.xsd spatialRepresentationImagery.xsd | dqc, mcc, gco, gmw |
| srv | Metadata for Services | 2.0 | Elements for describing services. | ISO 19115-1, Geographic Information - Metadata - Part 1: Fundamentals, 6.5.14 | services | http://standards.iso.org/iso/19115/-3/srv/2.0 | |
<<Leaf>> Services | srv.xsd | serviceInformation.xsd | gco, mcc, mri |
